HP 4145A Semiconductor Parameter Analyzer

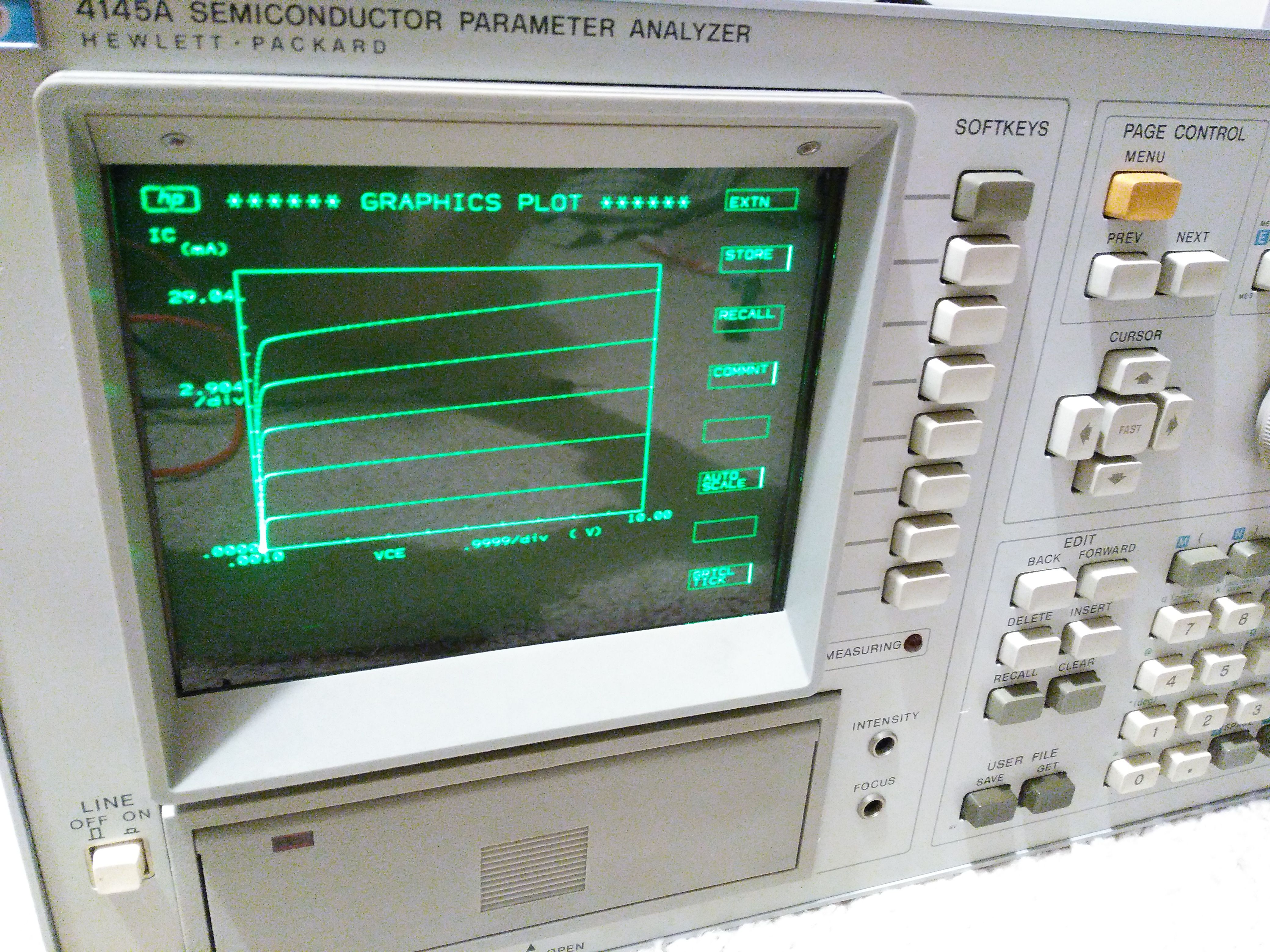

The HP 4145A in action.

Floppy disk imaging and duplication

The 4145A boots from a 5.25“ floppy disk, which is also used to hold user data. The format of the disk is sufficiently unusual (or rather, antique) that modern PCs will likely struggle to read the disks. However, due to the age of the original disk (mine is from 1989) and the fact that without it, the 4145A is nothing more than a very effective door stop, I was really keen to read the disk and come up with a method of duplicating it.

Disk format

If you have a computer that supports the following format, you should not have any trouble reading or writing the 4145A's disk:

  • 5.25” soft-sectored, IBM 3740 format
  • single sided
  • single density, FM encoding
  • 40 tracks
  • 9 sectors per track
  • 256 bytes sector size

In that case, you can just copy disks as you please and keep your 4145A alive forever - at least until the drive gives up the ghost.

Interfacing to the controller

The floppy controller inside the 4145A is a Fujitsu MB8866, which is thankfully placed on a separate board together with the HP-IB controller and is connected to the main CPU through a parallel data bus. This means that both the disk drive and the controller board can be removed from the 4145A and easily interfaced to something else in isolation. In my case, I decided to interface the controller to an mbed, which in hindsight may not have been the best choice: Some of the bus IO functions are surprisingly slow for a 96MHz ARM Cortex-M3, and it was just barely fast enough to interface to the controller. What a sad sign of the times.

Unfortunately, the datasheet for the MB8866 is rather sparse (mb8866-datasheet.pdf), and it definitely didn't contain enough information to successfully interface to it. However, a lot of the floppy controllers from that time are largely compatible - they share a similar interface, commands and internal state machines. I was very lucky to come across an excellent datasheet / app note for the TI TMS279X (tms279x-datasheet.pdf), which itself is a second-source option for the WD FD179X. The information in that datasheet allowed me to successfully talk to the MB8866. There are significant differences in the external and internal circuitry of these devices (e.g. internal vs. external VCO capacitors), but since I am using the HP 4145A's controller board all of this has been taken care of. The only differences I did need to care about are some minor ones in control and status bits.

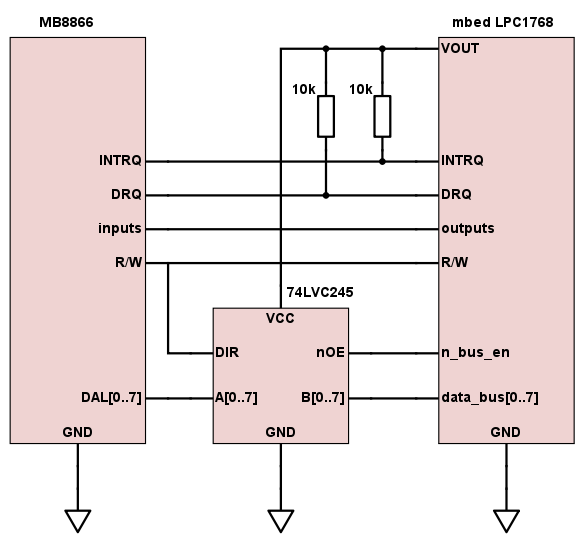

The figure below illustrated how the floppy controller board (“A9 board”, as per the service manual) is connected to the mbed. I used a 74LVC245 as a level shifter on the data bus to do a tidy job for once. Level shifting isn't needed on any other signals because the MB8866 is happy with 3.3V logic levels at its inputs and its only other two outputs to the mbed are open collector, which are pulled up to 3.3V.

Interfacing to the mbed.

The following table shows the connection of all the signals. As you can also see in the figure below, all connections to ICs are made using small probe hooks - by far the most convenient solution in my opinion. However, all signals are also available on the card edge connector.

Note that you need to supply an external 4MHz clock to the A9 board, as well as a 5V power supply. Do not use the mbed's VBUS for this purpose, as the board will draw >700mA. Besides, you will need an external 5V and 12V power supply anyway for the floppy drive.

Connection on A9 board Name on A9 board Connection on mbed Name on mbed Function
U2-4 FDSEL p21 fd_sel Activates floppy drive
U16-4 B4MHz Signal generator 4MHz 0-5V Clock for MB8866
U5-10 nFDCMR p23 n_reset Resets the MB8866
U5-9 nPRGRST
U3[7..14] IOD[0..7] p[13..20] data_bus Data bus (connected through '245)
U6-13 BBA2 p24 n_cs MB8866 Chip Select
U6-12 nFDDCS
U11-2 B02TTL p25 rw_en Enables nWE or nRE on the MB8866
U11-3 R/nW p26 rw high = read, low = write
U3[5..6] BBA[0..1] p[27..28] address_bus Address “bus”
U11-5 nHP-IB VOUT (3.3V) HP-IB controller Chip Select
U3-38 (DRQ) p29 drq Data request in read/write operations
U3-39 (INTRQ) p30 intrq Interrupt request (operation complete)
Test point 1 GND GND
Test point 4 +5V NC 5V power supply for A9 board
Test point 5 +12V NC 12V power supply for A9 board (not needed)

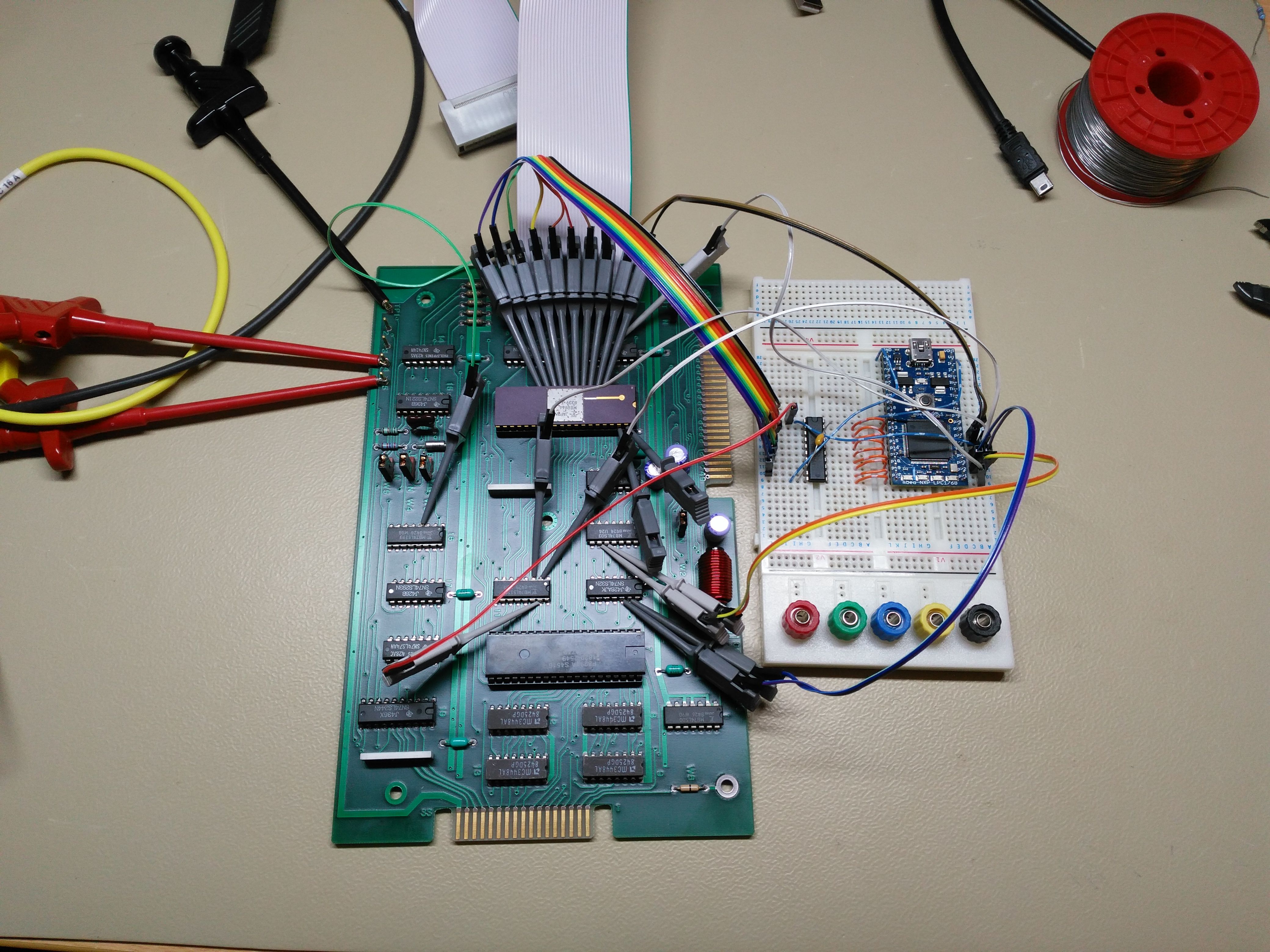

A9 board connected to mbed.

mbed firmware

The firmware on the mbed is rather simple. It connects to a PC through the USB UART, from which it takes commands and to which it returns data. Its functions are:

  • Control the floppy disk control lines
  • Read and write MB8866 registers
  • Read and write tracks and sectors

Copying the disk

On the PC, there is a collection of very hacky scripts that talk to the mbed and perform various tasks.

Read whole tracks from the disk

This is very useful to establish the exact format used on the disk. By looking at the raw track information, the exact gap sizes, sync bytes, and sector header and size can be determined.

./diskread.py > original_disk_tracks.txt

Read all sectors from the disk

This gets all the data (as seen by the processor) from the disk. Since the controller also checks the CRCs of the sectors, reading out the data this way almost guarantees a good (or at least known bad) disk image.

./diskread_sectors.py > original_disk_sectors.txt

Create a blank disk image

The raw track information read out earlier cannot simply be written back to make a copy of a disk for two reasons: First, only data written in one go after a sync byte is guaranteed to be valid. This means that as the whole track is read, there is some uncertainty and wrong data in the gaps between sectors. Second, in write track mode, the controller uses certain data bytes as special commands to write address marks or CRCs (e.g. instructing the controller to write 0xF7 will actually write two bytes of CRC to the disk).

Therefore, a special disk image must be created first which contains all of these control characters in the right places, and does not contain any data that could be interpreted by the controller as control characters.

./make_image.py > blank_disk.txt

Write the blank image (format the disk)

This will write the previously generated blank image to the disk (a new one, hopefully!), which generates the sector structure on the disk and hence effectively formats the disk:

./diskwrite.py < blank_disk.txt

Write data back to the disk

Now that the disk is properly formatted, the previously read data can be written back to the disk, sector-by-sector.

./diskwrite_sectors.py < original_disk_sectors.txt

The new disk now contains a faithful copy of the original, and certainly my 4145A didn't mind booting off it.
