Who doesn't like advent calendars? Even if one doesn't celebrate Christmas or tries to shield oneself from the festive season as much as possible, there is something special about advent calendars. I think it's the counting down towards an arbitrary goal, a new surprise (maybe chocolate!) every day and of course the objectification of anticipation. A bit like obsessively following the tracking information on a package, when you think about it.
At some point in late November 2015 a retina-searing LED arms race (sparked by some harmless albeit woefully underpowered Christmas decorations) was well under way in the office. This almost naturally led on to building an LED advent calendar, so that the combined joys of advent calendars and LEDs could be shared with my colleagues.
Unfortunately, as mentioned above, December was already looming on the horizon, so a decision on exactly what kind of LED advent calendar should be constructed and procurement of components had to proceed with the greatest haste. The following is a day-by-day account on the development of the luminous advent calendar:
No hacky project would be complete without the application of a Dymo label.
After carefully thinking about what it is that makes advent calendars exciting for me (doing something, getting a surprise, building up towards something), I came up with the following concept that consists of:
The calendar starts off with all LEDs turned off. When the button is pressed, a random LED turns on (and remains on). Each additional push of the button turns on an additional LED, until all 24 are lit after 24 days.
As always, there are a few complications:
The circuit used is embarrassingly simple: Each LED is powered from the USB supply, driven by a ULN2003, and has its current limited by a trimmpot. There is one GPIO pin for each LED, so no fancy multiplexing or anything clever.

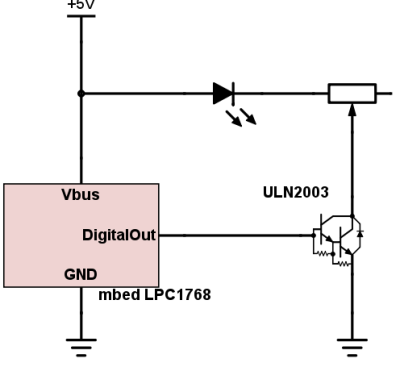

LED driver schematic. There are 24 of these.
There are a few reasons why this rather inelegant and simple driving method was chosen:
The resistor values for the trimmers were calculated beforehand to get a rough idea of the values required to equalise the perceived brightness of all LEDs. However, as one would imagine, there was quite a bit of tweaking involved in the end to get everything looking just right - and unfortunately I ran out of trimmers of the same style and had to resort to a few even crustier ones from my box.
Apart from that, literally the only other components on the board are a pushbutton switch with a pull-up resistor and a CR2032 for the battery-backed RTC of the mbed.
Boring.
Doesn't look as good with bright light coming from above.
Like the hardware, the firmware is really quite simple - It primarily consists of a state machine that deals with the switch input and turns on LEDs accordingly. The current number of LEDs that are on, and the sequence in which the LEDs turn on are kept in files on the mbed's embedded flash (accessible through the mass storage device).
One of the very few aspects of note about the firmware is the bit-bang PWM: When an LED turns on, it fades in slowly over a second or so. Since the mbed doesn't have 24 PWM channels and the LEDs aren't multiplexed, I had to implement a software PWM generator. This will works on any one pin at a time and is reasonably accurate and stable because the state machine is clocked and the time taken to execute it is fairly constant. The fade-in of the LEDs follows a quadratic duty cycle in order to get a perceived linear (well, close enough) fading effect. Again, thanks to the computing power provided by the mbed this task did not even pose a remote challenge.
Github repo coming soon.
